Genetic Engineering Sanitary 3000l/H Dairy Homogenizer

Genetic Engineering Sanitary 3000l/H Dairy Homogenizer

  • Genetic Engineering Sanitary 3000l/H Dairy Homogenizer
  • Genetic Engineering Sanitary 3000l/H Dairy Homogenizer
  • Genetic Engineering Sanitary 3000l/H Dairy Homogenizer
Genetic Engineering Sanitary 3000l/H Dairy Homogenizer
Product Details:
Place of Origin: Shanghai,China
Brand Name: SAMRO
Certification: ISO9001,CE
Model Number: SRH3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 8000-15000 set
Packaging Details: Export standard wooden case packing
Delivery Time: in 20-30 days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product: Dairy Homogenizer Flow Rate: 3000l/h
Pressure: 25Mpa - 75Mpa Plunger: 3 Pcs
Feature: High Pressure Contact Parts Material: SS 321
Energy Efficiency Grade: 2 Electric Control Box: Included With Main Machine
High Light:

3000l/H two stage homogenizer

,

Sanitary food homogenizer

,

High Pressure Dairy industry Homogenizer​

Genetic Engineering Sanitary 3000l/H Dairy Homogenizer​

Introduction

1) Big high pressure homogenizer manufactured and tested according to ISO EN 9001 Quality.

2) Sanitary.

3) Use the abrasion resistant material , longer life.

4) Design the 3 blocks, easily maintain .

5) Low noise.

Main applications:


(1) cell disruption, process new products, or harvesting the intracellular products;
(2) subdividing the particles or droplets present in fluids into very smallest sizes (submicron) and creating a stable dispersions and emulsions;
(3) homogenizing many other products;
Widely applied in fields of food, genetic engineering, chemical industry, pharmacy etc.



Specifications



Model
SRH3000-25/30
SRH3000-60
SRH3000-75
Rated flow capacity
3000L/h
Max pressure
25/30Mpa
60Mpa
75Mpa
Rated working pressure
0-20/24Mpa
0-54Mpa
0-60Mpa
Motor power
22/30Kw
55Kw
75Kw
Number of Plunger
3
Pressure adjustment
Manual adjustment
Feed pressure
0.2-0.3MPa
CIP
100°C/≤10000CP
Size
1.3*0.9*1.5(M)
1.6*1.1*1.6(M)
1.7*1.5*1.3(M)
Weight
2000/1800kg
3500kg
3500kg
Shell material
SS 304
Material of sealing ring
X4310(Hemp fiber +Teflon)
Pressure gauge
Diaphragm type



Power End

1). Electric motor,Siemens/Abb three-phase asynchronous motor,ranging from 3-160KW for various models.
2). Gearbox,two stage transmission.
Using two-stage reducing. First stage is V-belt reducing,and second stage adopts herring bone gear for symmetrical transmission,with diamountable slides. Special alloy rolling bearings and bushes at the two sides don’t need to be changed if under normal operation.
Horizontal structure,stable, low noise, mechanical efficiency is increased by about 10% on average.
Combined splash system lubrication and oil pump water cooling auxiliary lubrication ensure high quality lubricating.

Liquid End

1. Check valve
The conical type check valve can be applicable for the most product materials.
Valve can be offered with various materials according to customer’s product material properties,to realize the best working condition and meet CIP cleaning and acid and alkali resistant requirements especially in medical,dairy and chemical industry.
Poppet valve or ball valve. Ball valve offered for high viscocity liquid materials processing so as to ensure sufficient flow and stable working.

2. Homogenizing valve
Made of Tungsten-Cobalt-Titanium alloy or erosion-resisting cemented carbide,anti abrasion and compact,applicable for 0-1000bar pressure.
Optional for product materials and production requirements.

3.Sealing
Made of the 4th high grade sealing materials,anti-pressure,anti-abrasion and sanitary,heat resistance(up to 150℃).
V belts or square belts can be optional for product material properties,or customized belts can be offered.


4.Plunger
Made of erosion-resistance stainless steel,treated through multiple processes(reach mirror surface effect),accurate and durable. The application practice in dairy industry has proves that the average use life can reach 6000-10000 hours.

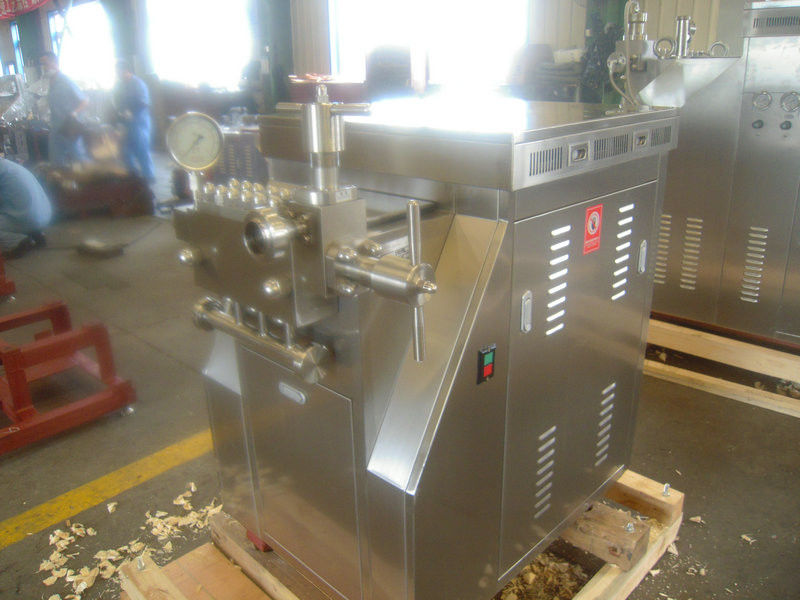

Detailed Photos



Genetic Engineering Sanitary 3000l/H Dairy Homogenizer 0

Genetic Engineering Sanitary 3000l/H Dairy Homogenizer 1
