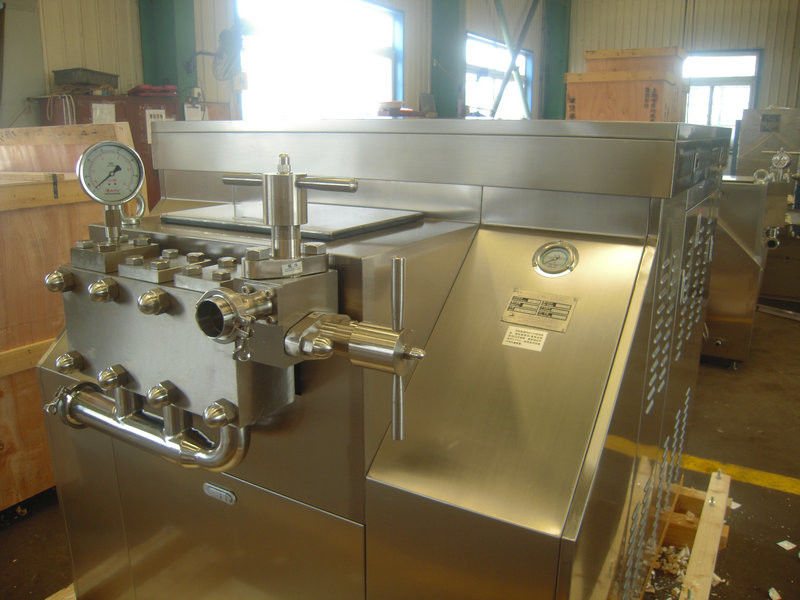

Two Stage Biotechnology Dairy Homogenizer Hydraulic Operating

Two Stage Biotechnology Dairy Homogenizer Hydraulic Operating

  • Two Stage Biotechnology Dairy Homogenizer Hydraulic Operating
  • Two Stage Biotechnology Dairy Homogenizer Hydraulic Operating
  • Two Stage Biotechnology Dairy Homogenizer Hydraulic Operating
Two Stage Biotechnology Dairy Homogenizer Hydraulic Operating
Product Details:
Place of Origin: CHINA
Brand Name: SAMRO
Certification: ISO
Model Number: SRH3000-30
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywood package with iron base
Delivery Time: 20-30 working days after receiving down payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Model: SRH3000-30 Dairy Homogenizer Material: Stainless Steel
Max Pressure: 30 Mpa Normal Working Pressure: 0-24 Mpa
Motor: 30 KW Size: 150*110*120 Cm
Weight: 1800 KG Application: Chemical Biotechnology Pharmaceutical
High Light:

Biotechnology Dairy Homogenizer

,

Two Stage Dairy Homogenizer

,

Hydraulic Operating Dairy Homogenizer

Stainless Steel Dairy Homogenizer For Chemical Biotechnology Pharmaceutical





Dairy Homogenizer Types



Manual Operating Homogenizer

Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.



Hydraulic Operating Homogenizer

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.



Pneumatic Operating Homogenizer

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.



Large Capacity Homogenizer

This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.



Laboratory Homogenizer

Capacity: 60L/H Max Pressure</=70MPa

Minimum Sample Volume: 200ml

Two-stage Homogenizing



Dairy Homogenizer Applications:



Food and Drink

Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.



Chemical

Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.



Biotechnology

Cell disruption of yeast, E.coil other bacteria and algae.



Pharmaceutical

Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes



Cosmetics

Hair products, skin creams, lotions, perfumes, shampoos and conditioners.





Samro Homogenizer Main model:



NO. Machine Piston Working MAX Working Continual Power Weight Size
Model radix rate Pressure Working KW Kg L×W×H
    (Liters/Hr) (Bar)MPa Pressure     M
        (Bar)
1 SRH60-70 1 60 70 0-56 3 270 0.7×0.4×1.3
2 SRH250-70 3 250 70 0-56 5.5 700 1.2×0.8×1.0
3 SRH500-35/45/70 3 500 35/45/70 0-28/36/56 5.5/7.5/11 700/750/800 1.2×0.8×1.0
4 SRH1000-35/45 3 1000 35/45 0-28/36 11or15 800/850 1.2×0.8×1.3
5 SRH1000-70 3 1000 70 0-56 22 1500 1.2×0.9×1.4
6 SRH1500-30/60 3 1500 30/60 0-24/48 15/30 850/1800 1.2×0.8×1.3
7 SRH1500-90 3 1500 90 0-72 45 2800 1.6×1.1×1.6
8 SRH2000-25/30 3 2000 25/30 0-20/24 15/22 1500 1.2×0.9×1.4
9 SRH2000-40 3 2000 40/45 0-32 30 1800 1.3×0.9×1.5
10 SRH2000-70 3 2000 70 0-56 45 2800 1.6×1.1×1.6
11 SRH2500-40 3 2500 40 0-32 37 1800 1.2×0.8×1.4
12 SRH3000-25/30 3 3000 25/30 0-20/24 30 1600/1800 1.3×0.9×1.5
13 SRH3000-40 3 3000 40 0-32 37 1800 1.7×1.1×1.5
14 SRH3000-55 3 3000 55 0-44 55 2800 1.6×1.1×1.6
15 SRH3000-70 4 3000 70 0-56 75 3000 1.7×1.5×1.3
16 SRH3500-40 3 3500 40 0-32 45 2800 1.6×1.1×1.6
17 SRH3500-50 3 3500 50 0-40 55 2800 1.6×1.1×1.6
18 SRH4000-25/30 3 4000 25/30 20/24 37/40 1800 1.7×1.1×1.5
19 SRH4000-40 3 4000 40 0-32 55 2800 1.6×1.1×1.6
20 SRH4000-60 3 or 4 4000 60 0-48 75 3000 1.7×1.5×1.3
21 SRH4000-70 4 4000 70 0-56 90 3000 1.7×1.5×1.3
22 SRH5000-25/30 3 5000 30 0-20/24 45/55 2800 2.3×1.1×1.4
23 SRH5000-45 4 5000 45 36 75 4000 1.7×1.5×1.3
24 SRH5000-70 4 5000 70 56 110 4500 1.8×1.5×1.4
25 SRH6000-25/30 3 or 4 6000 25/30 0-20/24 55/75 4000 1.7×1.5×1.3
26 SRH6000-40 4 6000 40 0-32 75 4500 1.7×1.5×1.3
27 SRH6000-55 4 6000 55 0-44 110 5000 1.8×1.5×1.4
28 SRH7000-25/35 3 or 4 7000 25/35 20/28 55/75 4000 1.7×1.5×1.3
29 SRH7500-30 4 7000 30 0-24 75 4500 1.7×1.5×1.3
30 SRH8000-25/30 3 or 4 8000 25/30 0-20/24 75 4000 1.7×1.5×1.3
31 SRH8000-40 4 8000 40 0-32 110 5000 1.8×1.5×1.4
32 SRH10000-25 4 10000 25 0-20 90 4500 1.8×1.5×1.4
33 SRH10000-35 4 10000 35 0-28 110 5000 1.8×1.5×1.4
34 SRH10000-40 4 10000 40 0-32 132 5000 2.2×1.6×1.4
35 SRH10000-45 4 10000 45 0-36 132 5000 2.2×1.6×1.4
36 SRH12000-30 4 12000 30 0-24 110 4500 1.8×1.5×1.4
37 SRH12000-40 4 12000 40 0-32 132 5000 2.2×1.6×1.4
38 SRH14000-30 4 14000 30 0-24 132 5000 2.2×1.6×1.4
39 SRH15000-23 4 15000 23 0-18 110 5000 2.2×1.6×1.4
40 SRH16000-40 4 16000 40 0-32 200 5500 2.2×1.8×1.4
41 SRTH20000-30 4 20000 30 0-24 200 5500 2.2×1.8×1.4



Two Stage Biotechnology Dairy Homogenizer Hydraulic Operating 0
