Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW
  • Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW

Industrial electric Two stage gear box milk homogenizer Machine 3000L/H 22 KW

Place of Origin China
Brand Name SAMRO
Certification CE

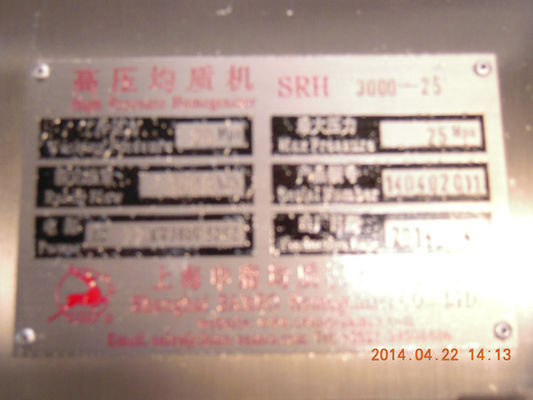

Model Number SRH3000-25
Product Details
Rated Flow:
3000L/H
Max Pressure:
25 Mpa
Rated Working Pressure:
20 Mpa
Motor Power:
22 KW
Size:
176*128*140cm
Weight:
1500KG
Piston:
3
Business Type:
Manufacture
High Light:

homogenizer for milk

,

Milk Homogeniser

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
negotiation
Packaging Details
Plywood package
Delivery Time
30 days after receiving down payment
Payment Terms
T/T
Supply Ability
50 sets per month
Product Description





Industrial electric Two stage gear box milk homogenizer 3000L/H 22 KW



Specifications:

  A: Power End

1.1 Driving: two-stage gear box;first stage, the triangle belt drive, second stage, crank gear symmetrical transmission; Special alloy bearing, bilateral Rolling bearing, horizontal smooth, low noise, mechanical efficiency is increased by about 10% on average.

   1.2 Lubricating: Automatic splash lubrication and oil pump lubrication, safe and reliable.

      B. Liquid End



1.1 Pump: three way type, gland radial self sealing, durable, no leakage

   1.2 Plunge: 3 plunge, durable, safe, easy dis-assembly

1.3 Checking valve: Poppet valve in and out each 3 sets, total 6 sets, Durable, reliable, make sure flow is over rated flow.

1.4 Pressure control: one diaphragm gauge assembly, control high pressure and low pressure.



2, Technical parameters



Model

SRH3000-25

Rated flow: L/H

3000

Max pressure: Mpa

25

Normal working pressure: Mpa

0-20

Inlet pressure: Mpa

0.2-0.3

Adaptable material feeding temperature / viscosity

100℃/≤1000CP

Rated motor power: KW

22

Size: cm

176*128*140

Weight: KG

1500

Lubricating oil

L-HM100 OR Mobil SHC627(ISO VG100)

Housing Material

Stainless steel

Plunge Sealing Material

packing

Pressure gauge

Diaphragm

Support material

shaped steel





3, Other specification

Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.

Plunger:High hardness stainless alloy(PH-type)

Check valve:High hardness stainless alloy (GrMoFr), abrade-resisting and impact-resisting

Pump block: SUS321.

Sealing: packing seal, with heat-proof reaching 100℃





Main applications:

  1. Food and Drink: enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, ice cream, baby food, chocolate, flavors and fragrances, milk powder.
  2. Chemical: Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity improvers.
  3. Biotechnology: Cell disruption of yeast. E.coil other bacteria and algae.
  4.  Cosmetics: Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
  5. Pharmaceutical: Antibiotics, skin creams, intravenous emulsion, ointments, tablet coatings, lipostiomes.


WORKING THEORY:

The working method of SAMRO homogenizer as following, when product is flowing through the adjustable valve, the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um) because of pressure decrease, expansion, explosion, cutting and high-speed impacting etc., then the emulsions or dispersions could be produced. This process refers to the following Fig.
Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.



Types of homogenizer:

  1. Manual operating Homogenizer

Two-stage homogenizing system with manual pressure adjustment is easy to use. It is your economic choice.

  1. Hydraulic operating Homogenizer

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to proportional valves.

  1. Pneumatic operating Homogenizer

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remo.

Spare parts:

Checking valve: the conical valve is applicable for the most product material. The valve material can vary according to customer’s requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.

Homogenizing valve: made of tungsten – Cobalt – Titanium alloy or erosion-resisting cemented carbide.  It is applicable for 0-1000 bar homogenizing pressure and CIP cleaning.

Sealing: packing seal and V-section seal are available for different homogenized materials.

Plunger: Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy demonstrates that the life is 6000-10000 hours.
