Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment

China Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment supplier
Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment supplier Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment supplier Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment supplier

Large Image :  Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment

Product Details:

Place of Origin: Shanghai,China
Brand Name: SAMRO
Certification: ISO9001,CE
Model Number: SRH4000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 10000-20000 set
Packaging Details: Export standard wooden case packing
Delivery Time: in 20-30 days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Flow Rate: 4000liter/hour Pressure: 25Mpa - 70Mpa
Pressure Adjustment: Manual Or Hydraulic Flow Control: Inverter Optional
Production Scale: Medium Product Material: Dairy Related,juice,pharmaceutic,chemical

Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment



Introduction
Working method: when product is flowing through the adjustable valve ,the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um ) because of pressure decrease, expansion, explosion,cutting and high-speed impacting etc., then the emulsions or dispersions could be produced.Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.

Main applications:
(1) cell disruption, process new products, or harvesting the intracellular products;
(2) subdividing the particles or droplets present in fluids into very smallest sizes (submicron) and creating a stable dispersions and emulsions;
(3) homogenizing many other products;
Widely applied in fields of food, genetic engineering, chemical industry, pharmacy etc.

Specifications

Model
SRH4000-25/30
SRH4000-40
SRH4000-60
SRH4000-70
Rated flow capacity
4000L/h
Max pressure
25/30Mpa
40Mpa
60Mpa
70Mpa
Rated working pressure
0-20/24Mpa
0-32Mpa
0-54Mpa
0-56Mpa
Motor power
30/37Kw
45Kw
75Kw
90Kw
Number of Plunger
3
Pressure adjustment
Manual adjustment
Feed pressure
0.2-0.3MPa
CIP
100°C/≤10000CP
Size
1.3*0.9*1.5(M)
1.7*1.1*1.5(M)
1.6*1.1*1.6(M)
1.7*1.5*1.3(M)
Weight
2000/1800kg
3000kg
3500kg
3500kg
Shell material
SS 304
Material of sealing ring
X4310(Hemp fiber +Teflon)
Pressure gauge
Diaphragm type



Power End

1).Electric motor,Siemens/Abb three-phase asynchronous motor,ranging from 3-160KW for various models.
2). Gearbox,two stage transmission.
Using two-stage reducing. First stage is V-belt reducing,and second stage adopts herring bone gear for symmetrical transmission,with diamountable slides. Special alloy rolling bearings and bushes at the two sides don’t need to be changed if under normal operation.
Horizontal structure,stable, low noise, mechanical efficiency is increased by about 10% on average.
Combined splash system lubrication and oil pump water cooling auxiliary lubrication ensure high quality lubricating.

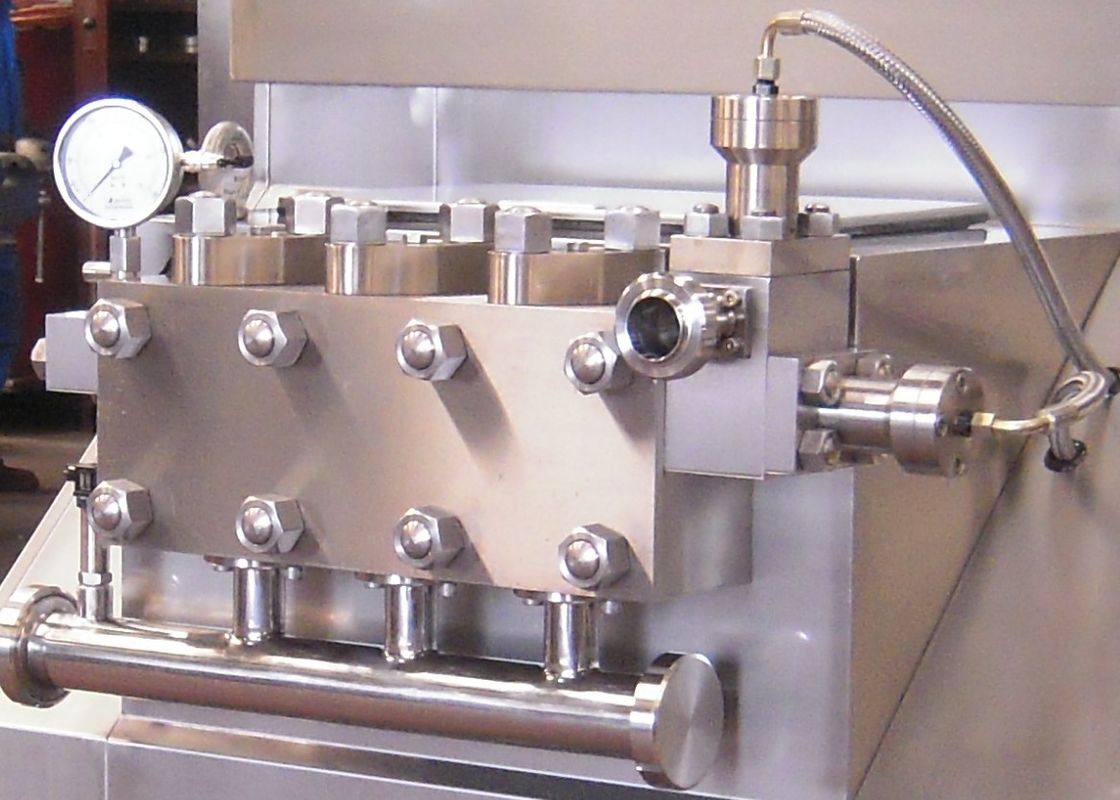

Liquid End

1.Check valve
The conical type check valve can be applicable for the most product materials.
Valve can be offered with various materials according to customer’s product material properties,to realize the best working condition and meet CIP cleaning and acid and alkali resistant requirements especially in medical,dairy and chemical industry.
Poppet valve or ball valve. Ball valve offered for high viscocity liquid materials processing so as to ensure sufficient flow and stable working.

2.Homogenizing valve
Made of Tungsten-Cobalt-Titanium alloy or erosion-resisting cemented carbide,anti abrasion and compact,applicable for 0-1000bar pressure.
Optional for product materials and production requirements.

3.Sealing
Made of the 4th high grade sealing materials,anti-pressure,anti-abrasion and sanitary,heat resistance(up to 150℃).
V belts or square belts can be optional for product material properties,or customized belts can be offered.


4.Plunger
Made of erosion-resistance stainless steel,treated through multiple processes(reach mirror surface effect),accurate and durable. The application practice in dairy industry has proves that the average use life can reach 6000-10000 hours.



Detailed Photos



Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment



Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment



Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment



Manually Operated 4t Flow Homogenizer Machine Hydraulic Pressure Adjustment
