750 Bar High Pressure Liquid Homogenizer For Chemical Materials

750 Bar High Pressure Liquid Homogenizer For Chemical Materials

    • 750 Bar High Pressure Liquid Homogenizer For Chemical Materials
    • 750 Bar High Pressure Liquid Homogenizer For Chemical Materials
    • 750 Bar High Pressure Liquid Homogenizer For Chemical Materials
  • 750 Bar High Pressure Liquid Homogenizer For Chemical Materials

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: SAMRO
    Certification: ISO9001,CE
    Model Number: SRH3000-75

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 9999-15000 set
    Packaging Details: Export standard wooden case packing
    Delivery Time: in 1 month
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Flow: 3000L/h Max Pressure: 75Mpa
    Rated Pressure: 0-60Mpa Suitable For Material: Chemical,beverage,flavour,food Additive,pharmaceutical
    Machine Cover: SS 304 Number Of Plunger: 3
    Pressure Adjustment: Manual Operation Electric Control Cabinet: Included
    Power: 75KW
    High Light:

    Two Stage Homogenizer

    ,

    Homogeniser Machine

    750 Bar High Pressure Liquid Homogenizer For Chemical Materials





    Introduction
    Working method: when product is flowing through the adjustable valve ,the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um ) because of pressure decrease, expansion, explosion,cutting and high-speed impacting etc., then the emulsions or dispersions could be produced.Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.

    Main applications:
    (1) cell disruption, process new products, or harvesting the intracellular products;
    (2) subdividing the particles or droplets present in fluids into very smallest sizes (submicron) and creating a stable dispersions and emulsions;
    (3) homogenizing many other products;
    Widely applied in fields of food, genetic engineering, chemical industry, pharmacy etc.



    Specifications

    Model
    SRH3000-75
    Rated flow capacity

     3000L/h

    Max pressure
    75Mpa
    Rated working pressure
    0-60Mpa
    Motor power
    75Kw
    Number of Plunger
    3
    Pressure adjustment
    Manual adjustment
    Feed pressure
    0.2-0.3MPa
    CIP
    100°C/≤10000CP
    Size
    1.8*1.2*1.3(M)
    Weight
    3500kg
    Shell material
    SS 304
    Material of sealing ring
    X4310(Hemp fiber +Teflon)
    Pressure gauge
    Diaphragm type


    Power End
    1).Electric motor,Siemens/Abb three-phase asynchronous motor,ranging from 3-160KW for various models.
    2). Gearbox,two stage transmission.
    Using two-stage reducing. First stage is V-belt reducing,and second stage adopts herring bone gear for symmetrical transmission,with diamountable slides. Special alloy rolling bearings and bushes at the two sides don’t need to be changed if under normal operation.
    Horizontal structure,stable, low noise, mechanical efficiency is increased by about 10% on average.
    Combined splash system lubrication and oil pump water cooling auxiliary lubrication ensure high quality lubricating.



    Liquid End

    1.Check valve
    The conical type check valve can be applicable for the most product materials.
    Valve can be offered with various materials according to customer’s product material properties,to realize the best working condition and meet CIP cleaning and acid and alkali resistant requirements especially in medical,dairy and chemical industry.
    Poppet valve or ball valve. Ball valve offered for high viscocity liquid materials processing so as to ensure sufficient flow and stable working.

    2.Homogenizing valve
    Made of Tungsten-Cobalt-Titanium alloy or erosion-resisting cemented carbide,anti abrasion and compact,applicable for 0-1000bar pressure.
    Optional for product materials and production requirements.

    3.Sealing
    Made of the 4th high grade sealing materials,anti-pressure,anti-abrasion and sanitary,heat resistance(up to 150℃).
    V belts or square belts can be optional for product material properties,or customized belts can be offered.
    4.Plunger
    Made of erosion-resistance stainless steel,treated through multiple processes(reach mirror surface effect),accurate and durable. The application practice in dairy industry has proves that the average use life can reach 6000-10000 hours.



    Detailed Photos

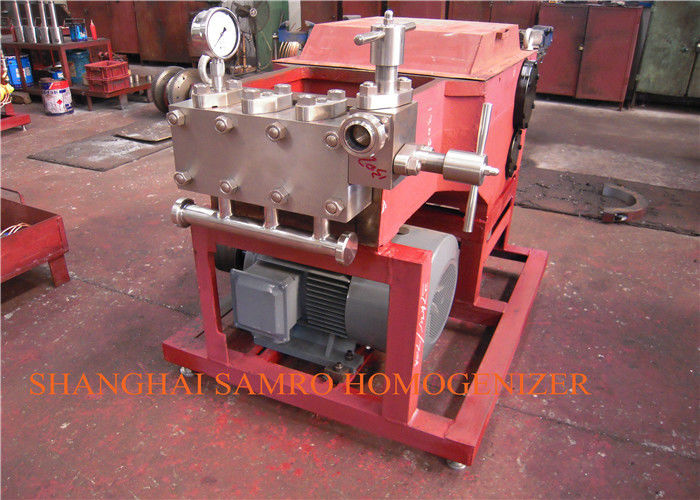

    750 Bar High Pressure Liquid Homogenizer For Chemical Materials 0



    750 Bar High Pressure Liquid Homogenizer For Chemical Materials 1



    750 Bar High Pressure Liquid Homogenizer For Chemical Materials 2
