Place of Origin: | China |
Brand Name: | SAMRO |
Certification: | ISO |
Model Number: | SRH6000-30 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | negotiable |
Packaging Details: | plywood with iron base package |
Delivery Time: | 20-30 working days after receiving down payment |
Payment Terms: | T/T |
Supply Ability: | 50 sets per month |
Name: | Food Homogenizer | Capacity: | 6000 L/H |
---|---|---|---|
Normal Working Presure: | 0-24 Mpa | Motor: | 55 KW |
Feature: | Powerful | Weight: | 3000 KG |
Warranty Time: | 12 Months | Business Type: | Manufacture |
High Light: | Homogenizer Machine,Homogenization Equipment,multifunctional food homogenizer |

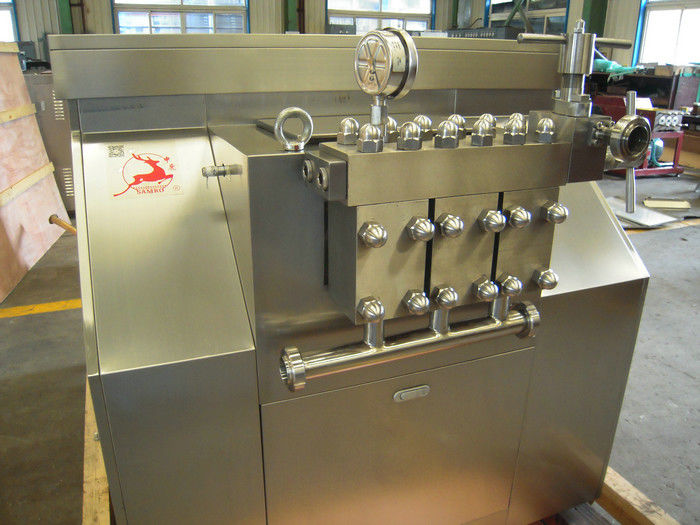

Multifunctional Food Homogenizer / Powerful Homogeniser Machine
Food Homogenizer Structural features
The equipment consist of rack, transmission case, pump body, pressure gage, homogenizer
etc parts. The machine is vertical positioned, electromotor installed inside the rack, transmission case mounted on the rack, pump body connect with the transmission case. Electromotor drive the transmission case gear shaft bent axle through the belt, linkage slider drive the plunger make reciprocating motion. The plunger inside the pump body make the pumping and compressing movement, the pressure formed through combination valve control feed liquid. When the machine used as homogenate, it should assemble the homogenizer, the feed liquid press in the homogenizer, after homogenizing valve’s effect, the feed liquid get fully homogeneous refinement. When the machine used as high pressure pump, it should assemble the high pressure over flow device, the feed liquid press in the outlet through pump body, when the pressure exceed the setting range, the overflow valve will open automatically, form the inside discharge, when the pressure under the setting value, the overflow valve will close automatically, so the feed liquid could convey safely in the setting pressure range.
Food Homogenizer technical parameters:
Model |
SRH6000-30 Food Homogenizer |
Rated flow: L/H |
6000 |
Max pressure: Mpa |
30 |
Normal working pressure: Mpa |
0-24 |
Inlet pressure: Mpa |
0.2-0.3 |
Adaptable material feeding temperature / viscosity |
100℃/≤1000CP |
Rated motor power: KW |
55 |
Size: cm |
180*120*130 |
Weight: KG |
3000 |
Lubricating oil |
L-HM100 OR Mobil SHC627(ISO VG100) |
Housing Material |
Stainless steel |
Plunge Sealing Material |
packing |
Pressure gauge |
Diaphragm |
Support material |
shaped steel |
Applications:
1.Food and Drink
Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.
2.Chemical
Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.
3.Biotechnology
Cell disruption of yeast, E.coil other bacteria and algae.
4.Pharmaceutical
Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes
Qustions you may have about our company:
1. Are you a new company?
Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.
2. Do you have different pressure from the mentioned one?
Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you the best service and rather competitive price.
3. What’s the meaning of your Model No.?
We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.
We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
If you have any special request, please kindly let us know, we will try our best to meet your demand.
