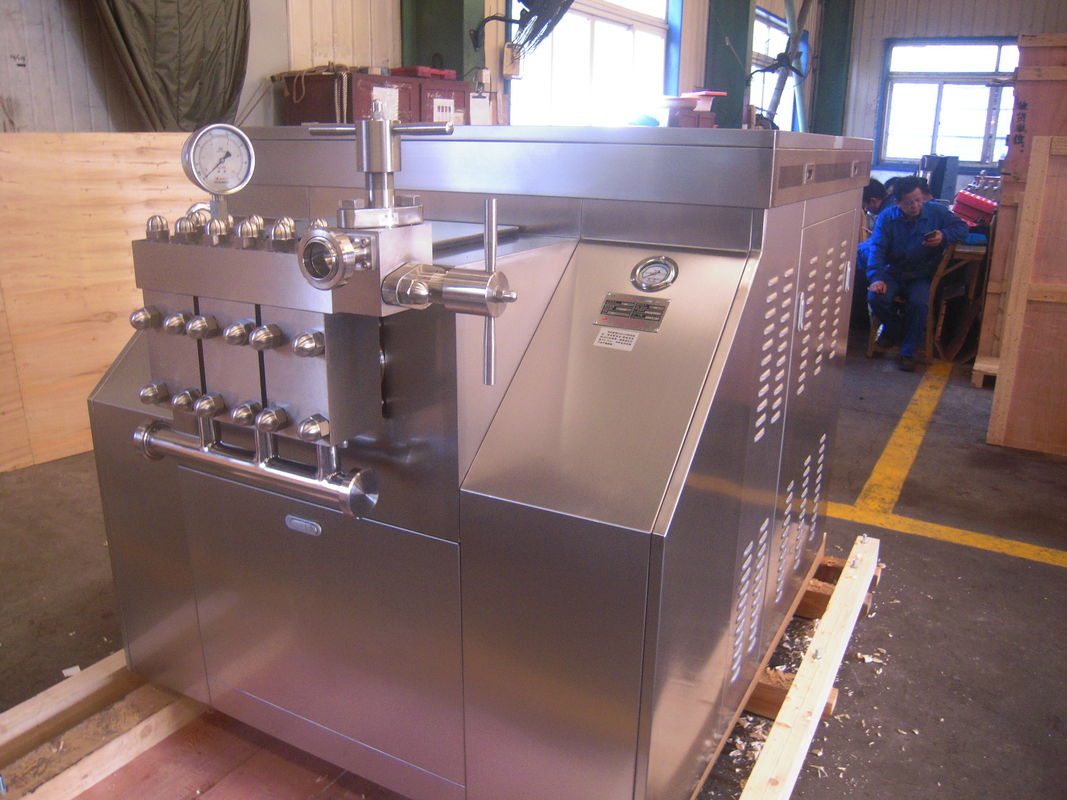

Large Capacity Juice Homogenizer Hydraulic / Pneumatic Operating
  • Large Capacity Juice Homogenizer Hydraulic / Pneumatic Operating
  • Large Capacity Juice Homogenizer Hydraulic / Pneumatic Operating
  • Large Capacity Juice Homogenizer Hydraulic / Pneumatic Operating

Large Capacity Juice Homogenizer Hydraulic / Pneumatic Operating

Place of Origin China
Brand Name SAMRO
Certification ISO
Model Number SRH3000-40
Product Details
Type:
Juice Homogenizer
Capacity:
Large Capacity
Operating:
Hydraulic / Pneumatic Operating
Normal Working Pressure:
0-32 Mpa
Motor:
37 KW
Warranty Time:
12 Months
Weight:
2000 KG
Size:
150*110*120 Cm
Highlight:

food homogenizer

,

high speed homogeniser

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
negotiable
Packaging Details
plywood package with iron base
Delivery Time
20-30 working days after receiving down payment
Payment Terms
T/T
Supply Ability
50 sets per month
Product Description

Large Capacity Juice Homogenizer Hydraulic / Pneumatic Operating



Juice Homogenizer Structural features









The Juice Homogenizer consist of rack, transmission case, pump body, pressure gage, homogenizer

etc parts. The machine is vertical positioned, electromotor installed inside the rack, transmission case mounted on the rack, pump body connect with the transmission case. Electromotor drive the transmission case gear shaft bent axle through the belt, linkage slider drive the plunger make reciprocating motion. The plunger inside the pump body make the pumping and compressing movement, the pressure formed through combination valve control feed liquid. When the machine used as homogenate, it should assemble the homogenizer, the feed liquid press in the homogenizer, after homogenizing valve’s effect, the feed liquid get fully homogeneous refinement. When the machine used as high pressure pump, it should assemble the high pressure over flow device, the feed liquid press in the outlet through pump body, when the pressure exceed the setting range, the overflow valve will open automatically, form the inside discharge, when the pressure under the setting value, the overflow valve will close automatically, so the feed liquid could convey safely in the setting pressure range.



Juice Homogenizer parameter



Model

SRH3000-40 Juice Homogenizer

Rated volume of flow

≥3000 L/H

Maximum working pressure

40 MPa

Rated working pressure

≤32 MPa

Feed pressure

0.2-0.3 MPa

CIP

100℃/≤10000CP

Weight

2000 KG

Size

170*110*140 cm

Piston

3

Shell material

Stainless steel



Juice Homogenizer Components:



Check Valve:

The check valve is conical valve. It’s applicable for the most product material. The valve material can vary according to customers’ requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.



Homogenizing valve:

Homogenizing valve is made of Tungsten-Cobalt- Titanium alloy or erosion-resisting cemented carbide. Applicable for 0-1000bar homogenizing pressure and CIP cleaning.



Sealing:

Packing seal and V-section seal are available for different homogenized material.



Plunger:

Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy industry demonstrates that the life is 6000-10000 hours.



Types of Homogenizer:



Manual Operating Homogenizer:

Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.



Hydraulic Operating Homogenizer:

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.



Pneumatic Operating Homogenizer:

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.



Large Capacity Homogenizer:

This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.





Large Capacity Juice Homogenizer Hydraulic / Pneumatic Operating 0



Questions you may have about our company and product:



1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.



2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.
