Two Stage Milk Homogenizer Machine / Cream Homogenization Equipment

Two Stage Milk Homogenizer Machine / Cream Homogenization Equipment

    • Two Stage Milk Homogenizer Machine / Cream Homogenization Equipment
    • Two Stage Milk Homogenizer Machine / Cream Homogenization Equipment
    • Two Stage Milk Homogenizer Machine / Cream Homogenization Equipment
  • Two Stage Milk Homogenizer Machine / Cream Homogenization Equipment

    Product Details:

    Place of Origin: China
    Brand Name: SAMRO
    Certification: ISO
    Model Number: SRH7000-35

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: plywood with iron base package
    Delivery Time: 20-30 working days after receiving down payment
    Payment Terms: T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Name: Milk Homogenizer Machine Capacity: 7000 L/H
    Max Pressure: 35 Mpa Motor: 75 KW
    Size: 180*120*130 Cm Type: Homogenization Equipment
    High Light:

    Ice Cream Homogenizer machine

    ,

    milk homogenization

    Two Stage Milk Homogenizer Machine / Cream Homogenization Equipment

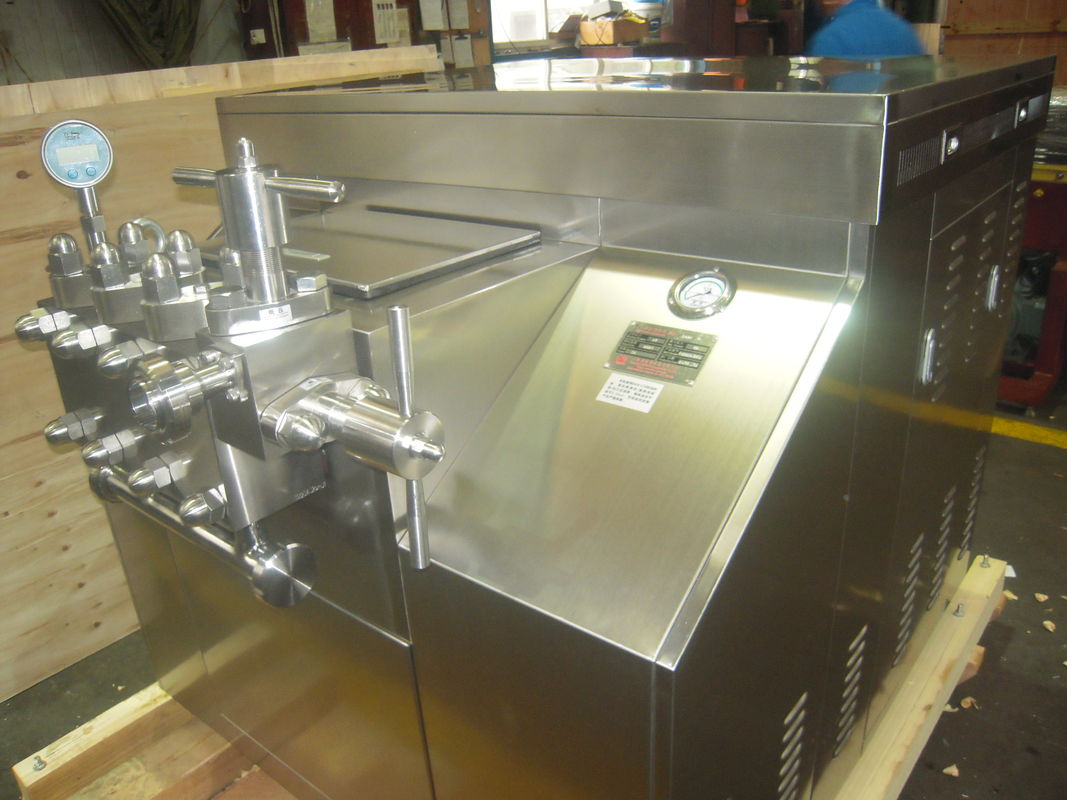

    Milk Homogenizer Machine Description



    High pressure milk homogenizer is a special equipment of the liquid material thinning and high pressure transportation.It is composed of frame, wheel box, pump body, pressure meter, homogenizer and so on.



    Milk Homogenizer Machine parameters:



    Model

    SRH7000-35 Milk Homogenizer Machine

    Rated flow: L/H

    7000

    Max pressure: Mpa

    35

    Normal working pressure: Mpa

    0-28

    Inlet pressure: Mpa

    0.2-0.3

    Adaptable material feeding temperature / viscosity

    100℃/≤1000CP

    Rated motor power: KW

    75

    Size: cm

    180*120*130

    Weight: KG

    3500

    Lubricating oil

    L-HM100 OR Mobil SHC627(ISO VG100)

    Housing Material

    Stainless steel

    Plunge Sealing Material

    packing

    Pressure gauge

    Diaphragm

    Support material

    shaped steel



    Homogenizer Applications:



    Food and Drink:

    Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.



    Chemical:

    Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.



    Biotechnology:

    Cell disruption of yeast, E.coil other bacteria and algae.



    Pharmaceutical:

    Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes



    Cosmetics:

    Hair products, skin creams, lotions, perfumes, shampoos and conditioners.



    Two Stage Milk Homogenizer Machine / Cream Homogenization Equipment 0

    Two Stage Milk Homogenizer Machine / Cream Homogenization Equipment 1



    Types of Homogenizer:



    Manual Operating Homogenizer:

    Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.



    Hydraulic Operating Homogenizer:

    The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.



    Pneumatic Operating Homogenizer:

    The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.



    Large Capacity Homogenizer:

    This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.



    Laboratory Homogenizer:

    Capacity: 60L/H Max Pressure</=70MPa

    Minimum Sample Volume: 200ml

    Two-stage Homogenizing



    Qustions you may have about our company:



    1. Are you a new company?

    Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.



    2. Do you have different pressure from the mentioned one?

    Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.



    3. What’s the meaning of your Model No.?

    We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.



    We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
