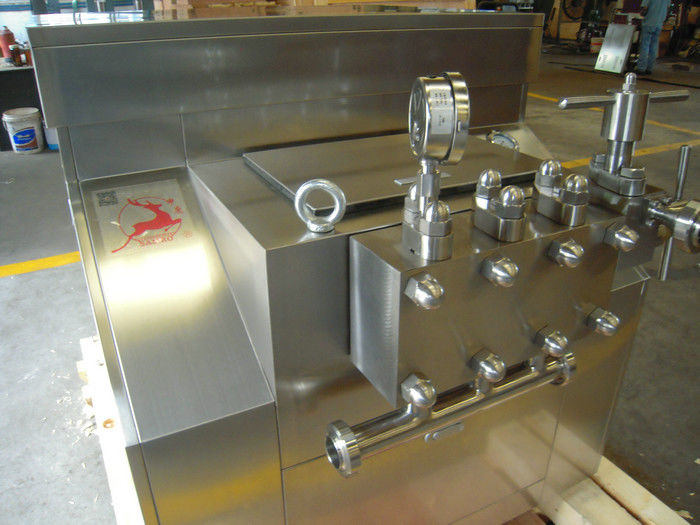

High Pressure Food Homogenizer Machine With Pneumatic Control System

High Pressure Food Homogenizer Machine With Pneumatic Control System

Food Homogenizer Machine Introduction

high pressure homogenizer is a new product that we manufactured successfully according to the international newest technology of Nineties. It is suitable for the homogenizing of liquid products whose viscosity is lower than 0.2Pa and whose temperature is lower than 80°C such as dairy, beverage, makeup, and medicine and so on.

This equipment transports the processed material to homogenizing vale in high pressure way by triple plunger pump, making the material receive complex force such as turbulence, cavity, cut when the material flow past the little space between the valve plate and the valve seat to reach the purpose of emulsification and homogenizing.

Main technical parameters:

Applications:

1.Food and Drink

Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.

2.Chemical

Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.

3.Biotechnology

Cell disruption of yeast, E.coil other bacteria and algae.

4.Pharmaceutical

Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes

5.Cosmetics

Hair products, skin creams, lotions, perfumes, shampoos and conditioners.

Types of Homogenizer:

1.Manual Operating Homogenizer

Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.

2.Hydraulic Operating Homogenizer

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.

3.Pneumatic Operating Homogenizer

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.

4.Large Capacity Homogenizer

This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.

5.Laboratory Homogenizer

Capacity: 60L/H Max Pressure</=70MPa

Minimum Sample Volume: 200ml

Questions you may have about our company:

1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.

2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you the best service and rather competitive price.

3. What’s the meaning of your Model No.?

We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.

We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.

If you have any special request, please kindly let us know, we will try our best to meet your demand.
