Low Noise Liquid Homogenizer Food Industry , Day Care Use Easy To Clean

Low Noise Liquid Homogenizer Food Industry , Day Care Use Easy To Clean

Liquid Homogenizer Appication

The food homogenizer is mainly used in the food or chemical industry, such as: homogenization and emulsification processes in the production process of dairy products, beverages, cosmetics, pharmaceuticals and other products.

Introduction of Grease Homogenizer

There are four adjustment screws and spacers at the bottom of grease homogenizer. No other fixing is required. If rubber shock pads are placed under the blocks, the noise and stability of work can be further reduced.

Working Principle of Mango Homogenizer Machine

The mango homogenizer machine adopts a V-belt to drive the transmission shaft and drive the plunger to reciprocate through the connecting rod slider, so that the liquid of the pump body is continuously sucked in and out. Therefore, the material generates strong pressure, so that the liquid is being squeezed. Strong impact, pressure loss, expansion and other composite forces are effectively refined and mixed.

Main technical parameters:

Types of Homogenizer:

1.Manual Operating Homogenizer

Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.

2.Hydraulic Operating Homogenizer

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.

3.Pneumatic Operating Homogenizer

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.

4.Large Capacity Homogenizer

This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.

5.Laboratory Homogenizer

Capacity: 60L/H Max Pressure</=70MPa

Minimum Sample Volume: 200ml

Certificate:

Qustions you may have about our company:

1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.

2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you the best service and rather competitive price.

3. What’s the meaning of your Model No.?

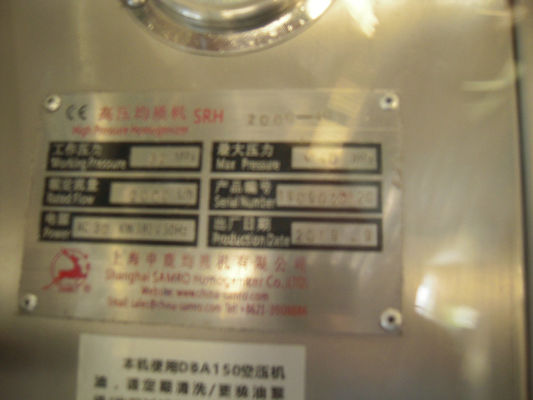

We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.

We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.

If you have any special request, please kindly let us know, we will try our best to meet your demand.
