High Capacity Food Homogenizer Machine / Powder Homogenizer Corrosion Resistance

China High Capacity Food Homogenizer Machine / Powder Homogenizer Corrosion Resistance supplier
High Capacity Food Homogenizer Machine / Powder Homogenizer Corrosion Resistance supplier High Capacity Food Homogenizer Machine / Powder Homogenizer Corrosion Resistance supplier

Large Image :  High Capacity Food Homogenizer Machine / Powder Homogenizer Corrosion Resistance

Product Details:

Place of Origin: China
Brand Name: SAMRO
Certification: ISO
Model Number: SRH1500-60

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: Plywood package with iron base
Delivery Time: 30 days after receiving down payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Food Homogenizer Machine Feature: High Capacity
Max Pressure: 60 Mpa Rated Working Pressure: 0-48 Mpa
Motor Power: 30 KW Size: 150*110*120 Cm
Weight: 1800 KG Piston: 3

High Capacity Food Homogenizer Machine / Powder Homogenizer Corrosion Resistance



Food Homogenizer Machine Description


One-piece mono-block made of forged stainless steel, high strength. Designed to give easy access for inspection and maintenance. In addition to have ceramic plungers and a cooling system with water, with practical design that allows a minimum of parts, and seals and gaskets of sanitary grade material. Integrated to the cleaning and disinfection system C.I.P. With high-strength cast steel transmission system, operating with low level of noise. Efficient electric power consumption.



Food Homogenizer Machine Technical parameters



Model

SRH1500-60 Food Homogenizer Machine

Rated flow: L/H

1500

Max pressure: Mpa

60

Normal working pressure: Mpa

0-48

Inlet pressure: Mpa

0.2-0.3

Adaptable material feeding temperature / viscosity

100℃/≤1000CP

Rated motor power: KW

30

Size: cm

150*110*120

Weight: KG

1800

Lubricating oil

L-HM100 OR Mobil SHC627(ISO VG100)

Housing Material

Stainless steel

Plunge Sealing Material

packing

Pressure gauge

Diaphragm

Support material

shaped steel

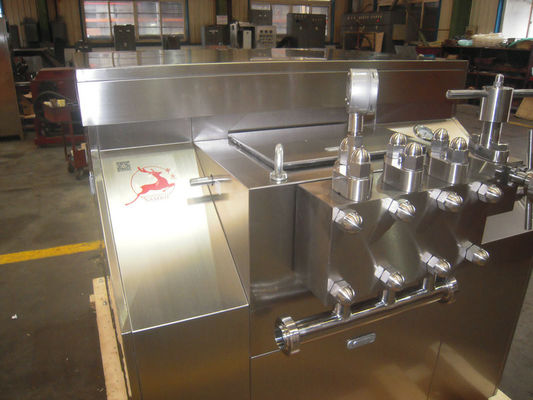

Food Homogenizer Machine Pictures



High Capacity Food Homogenizer Machine / Powder Homogenizer Corrosion Resistance



Food Homogenizer Machine applications:

  1. Food and Drink: enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, ice cream, baby food, chocolate, flavors and fragrances, milk powder.
  2. Chemical: Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity improvers.
  3. Biotechnology: Cell disruption of yeast. E.coil other bacteria and algae.
  4.  Cosmetics: Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
  5. Pharmaceutical: Antibiotics, skin creams, intravenous emulsion, ointments, tablet coatings, lipostiomes.


Working Theory:



The working method of SAMRO homogenizer as following, when product is flowing through the adjustable valve, the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um) because of pressure decrease, expansion, explosion, cutting and high-speed impacting etc., then the emulsions or dispersions could be produced. This process refers to the following Fig.
Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.



Spare parts:



Checking valve: the conical valve is applicable for the most product material. The valve material can vary according to customer’s requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.

Homogenizing valve: made of tungsten – Cobalt – Titanium alloy or erosion-resisting cemented carbide.  It is applicable for 0-1000 bar homogenizing pressure and CIP cleaning.

Sealing: packing seal and V-section seal are available for different homogenized materials.

Plunger: Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy demonstrates that the life is 6000-10000 hours.



Factory View:



High Capacity Food Homogenizer Machine / Powder Homogenizer Corrosion Resistance



Questions you may have about our factory:



1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.



2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.



3. What’s the meaning of your Model No.?

We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.



We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
