PLC Sanitary Ice Cream Homogenizer 6000L/H With CIP Cleaning

PLC Sanitary Ice Cream Homogenizer 6000L/H With CIP Cleaning

  • PLC Sanitary Ice Cream Homogenizer 6000L/H With CIP Cleaning
  • PLC Sanitary Ice Cream Homogenizer 6000L/H With CIP Cleaning
  • PLC Sanitary Ice Cream Homogenizer 6000L/H With CIP Cleaning
PLC Sanitary Ice Cream Homogenizer 6000L/H With CIP Cleaning
Product Details:
Place of Origin: China
Brand Name: SAMRO
Certification: ISO
Model Number: SRH6000-60
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywood with iron base package
Delivery Time: 20-30 working days after receiving down payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Ice Cream Homogenizer Machine Capacity: 6000L/H
Feature: Sanitary Normal Working Presure: 0-48 Mpa
Motor: 110 KW Size: 190*150*150 Cm
Control: PLC Control Warranty Time: 12 Months
High Light:

Sanitary Ice Cream Homogenizer

,

PLC Ice Cream Homogenizer

,

Ice Cream Homogenizer 6000L/H

Sanitar Ice Cream Homogenizer Machine With PLC Control Convenient



Ice Cream Homogenizer Advantages



1. high precision PLC control, support formula storage and error prevention management

2. Measure PH/ viscosity/density/concentration online

3. Equipped with CIP cleaning system, automatic cleaning, convenient, sanitary and complete

4. German high shear homogenization technology, multi-stage emulsification

5. 80% of main components come from world famous manufacturers (Siemens, ABB, bergman, delixi, etc.)

6. The stirring speed can be adjusted by non-polar frequency conversion, and the materials can be mixed in various ways to make them fully integrated



Ice Cream Homogenizer parameters:



Model

SRH6000-60 Ice Cream Homogenizer

Rated flow: L/H

6000

Max pressure: Mpa

60

Normal working pressure: Mpa

0-48

Inlet pressure: Mpa

0.2-0.3

Adaptable material feeding temperature / viscosity

100℃/≤1000CP

Rated motor power: KW

110

Size: cm

190*150*150

Weight: KG

4000

Lubricating oil

L-HM100 OR Mobil SHC627(ISO VG100)

Housing Material

Stainless steel

Plunge Sealing Material

packing

Pressure gauge

Diaphragm

Support material

shaped steel



Ice Cream Homogenizer Applications:



Food and Drink:

Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.



Chemical:

Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.



Biotechnology:

Cell disruption of yeast, E.coil other bacteria and algae.



Pharmaceutical:

Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes

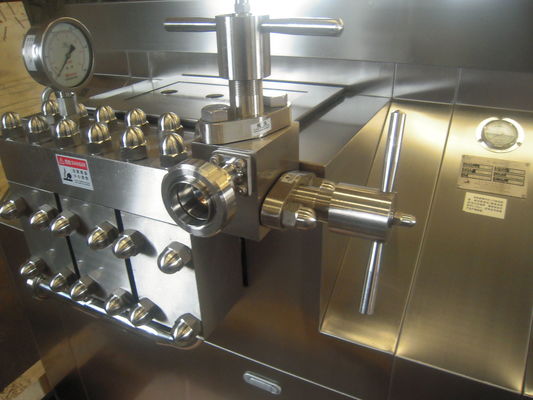

Ice Cream Homogenizer Pictures



PLC Sanitary Ice Cream Homogenizer 6000L/H With CIP Cleaning 0

PLC Sanitary Ice Cream Homogenizer 6000L/H With CIP Cleaning 1



Types of Homogenizer:



Manual Operating Homogenizer:

Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.



Hydraulic Operating Homogenizer:

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.



Pneumatic Operating Homogenizer:

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.



Large Capacity Homogenizer:

This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.



Laboratory Homogenizer:

Capacity: 60L/H Max Pressure</=70MPa

Minimum Sample Volume: 200ml

Two-stage Homogenizing



Qustions you may have about our company:



1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.



2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.
