Stainless Steel 2 stage Chemical Homogenizer for wax emulsions
  • Stainless Steel 2 stage Chemical Homogenizer for wax emulsions

Stainless Steel 2 stage Chemical Homogenizer for wax emulsions

Place of Origin China
Brand Name SAMRO
Certification ISO
Model Number SRH2000-60
Product Details
Capacity:
2000 L/H
Max Pressure:
60 Mpa
Normal Working Pressure:
0-48 Mpa
Motor:
37 KW
Warranty Time:
12 Months
Weight:
2800 KG
Size:
180*115*140 Cm
Business Type:
Manufacture
Name:
Stainless Steel 2 Stage Chemical Homogenizer For Wax Emulsions
Highlight:

Homogenization Machine

,

manual homogenizer

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
plywood package with iron base
Delivery Time
20-30 working days after receiving down payment
Payment Terms
T/T
Supply Ability
50 sets per month
Product Description



Stainless Steel 2 stage Chemical Homogenizer for wax emulsions





Shanghai Samro Homogenizer Co., Ltd     Samro Homogenizer---Your best choice

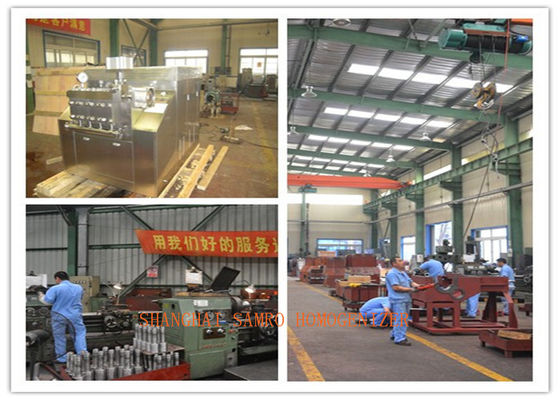

SAMRO Homogenizer Co., Ltd., which located in High Technology Industry Zone, Anting, Shanghai China, nearby Shanghai F1 Circuit. Samro Homogenizer is a worldwide supplier of high pressure homegenizing systems. We have been specializing in homogenizer from 1980 to continuously advance the technology of homogenization. We are the biggest supplier of the homegenizer of China and our products are exported to Europe, American, Africa and Southeast Asia. We were awarded 28th International Commercial Honor Prize in 1998, High-quality Product prize and honored of The Recommend Products of China Entering into WTO by Association Technology Nouvelle De France in 2001.



Our mission is supplying our customers the high-quality homogenizer to help them use the homogenizer more economically than ever before.



Model: SRH2000-60:

Model

SRH2000-60

Rated volume of flow

≥2000 L/H

Maximum working pressure

60 MPa

Rated working pressure

≤48 MPa

Feed pressure

0.2-0.3 MPa

CIP

100℃/≤10000CP

Weight

2800 KG

Size

180*115*140 cm

Piston

3

Shell material

Stainless steel



Components:



Check Valve:

The check valve is conical valve. It’s applicable for the most product material. The valve material can vary according to customers’ requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.



Homogenizing valve:

Homogenizing valve is made of Tungsten-Cobalt- Titanium alloy or erosion-resisting cemented carbide. Applicable for 0-1000bar homogenizing pressure and CIP cleaning.



Sealing:

Packing seal and V-section seal are available for different homogenized material.



Plunger:

Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy industry demonstrates that the life is 6000-10000 hours.



Homogenizer Applications:



Food and Drink:

Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.



Chemical:

Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.



Biotechnology:

Cell disruption of yeast, E.coil other bacteria and algae.



Pharmaceutical:

Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes



Cosmetics:

Hair products, skin creams, lotions, perfumes, shampoos and conditioners.



Types of Homogenizer:



Manual Operating Homogenizer:

Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.



Hydraulic Operating Homogenizer:

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.



Pneumatic Operating Homogenizer:

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.



Large Capacity Homogenizer:

This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.



Laboratory Homogenizer:

Capacity: 60L/H Max Pressure</=70MPa

Minimum Sample Volume: 200 ml



Questions you may have about our company and product:



1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.



2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.



3. What’s the meaning of your Model No.?

We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.



We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need. We are happy to service you.
