Small Size Milk Homogenizer Machine Reliable Sealing Durable
  • Small Size Milk Homogenizer Machine Reliable Sealing Durable
  • Small Size Milk Homogenizer Machine Reliable Sealing Durable
  • Small Size Milk Homogenizer Machine Reliable Sealing Durable
  • Small Size Milk Homogenizer Machine Reliable Sealing Durable

Small Size Milk Homogenizer Machine Reliable Sealing Durable

Place of Origin Shanghai,China
Brand Name SAMRO
Certification ISO9001,CE
Model Number SRH500-25
Product Details
Product:
Fresh Milk,ice Cream,yoghurt,etc
Capacity:
500ltr/hr
Working Pressure:
0-20Mpa
Voltage Supply:
3 Phase 380V/400V/415V/440V/480V
Motor Brand:
Siemens Or WNM
Homogenization Procedure:
2 Stages
Uselife Of Sealing:
1-2 Years
Highlight:

homogenizer for milk

,

Milk Homogeniser

,

small size milk homogenizer

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 7500 set
Packaging Details
Export standard wooden case packing
Delivery Time
in 20-30 days
Supply Ability
50 sets per month
Product Description

Small Size Milk Homogenizer Machine Reliable Sealing Durable

Introduction
Working method: when product is flowing through the adjustable valve ,the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um ) because of pressure decrease, expansion, explosion,cutting and high-speed impacting etc., then the emulsions or dispersions could be produced.Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.

Main applications:
(1) cell disruption, process new products, or harvesting the intracellular products;
(2) subdividing the particles or droplets present in fluids into very smallest sizes (submicron) and creating a stable dispersions and emulsions;
(3) homogenizing many other products;
Widely applied in fields of food, genetic engineering, chemical industry, pharmacy etc.

Specifications

Model

SRH500-25
Rated flow capacity
500L/h
Max pressure
25Mpa
Rated working pressure
0-20Mpa
Motor power
4.5Kw
Number of Plunger
3
Pressure adjustment
Manual adjustment
Feed pressure
0.2-0.3MPa
CIP
100°C/≤10000CP
Size
1.2*0.8*1.15(M)
Weight
750kg
Shell material
SS 304
Material of sealing ring
X4310(Hemp fiber +Teflon)
Pressure gauge
Diaphragm type



Power End

1).Electric motor,Siemens/Abb three-phase asynchronous motor,ranging in 3-160KW for various models.
2).Gearbox,two stage transmission.
Using two-stage reducing. First stage is V-belt reducing,and second stage adopts herring bone gear for symmetrical transmission,with diamountable slides. Special alloy rolling bearings and bushes at the two sides don’t need to be changed if under normal operation.
Horizontal structure,stable, low noise, mechanical efficiency is increased by about 10% on average.
Combined splash system lubrication and oil pump water cooling auxiliary lubrication ensure high quality lubricating.

Liquid End

1.Check valve
The conical type check valve can be applicable for the most product materials.
Valve can be offered with various materials according to customer’s product material properties,to realize the best working condition and meet CIP cleaning and acid and alkali resistant requirements especially in medical,dairy and chemical industry.
Poppet valve or ball valve. Ball valve offered for high viscocity liquid materials processing so as to ensure sufficient flow and stable working.

2.Homogenizing valve
Made of Tungsten-Cobalt-Titanium alloy or erosion-resisting cemented carbide,anti abrasion and compact,applicable for 0-1000bar pressure.
Optional for product materials and production requirements.

3.Sealing
Made of the 4th high grade sealing materials,anti-pressure,anti-abrasion and sanitary,heat resistance(up to 150℃).
V belts or square belts can be optional for product material properties,or customized belts can be offered.


4.Plunger
Made of erosion-resistance stainless steel,treated through multiple processes(reach mirror surface effect),accurate and durable. The application practice in dairy industry has proves that the average use life can reach 6000-10000 hours.



Detailed Photos

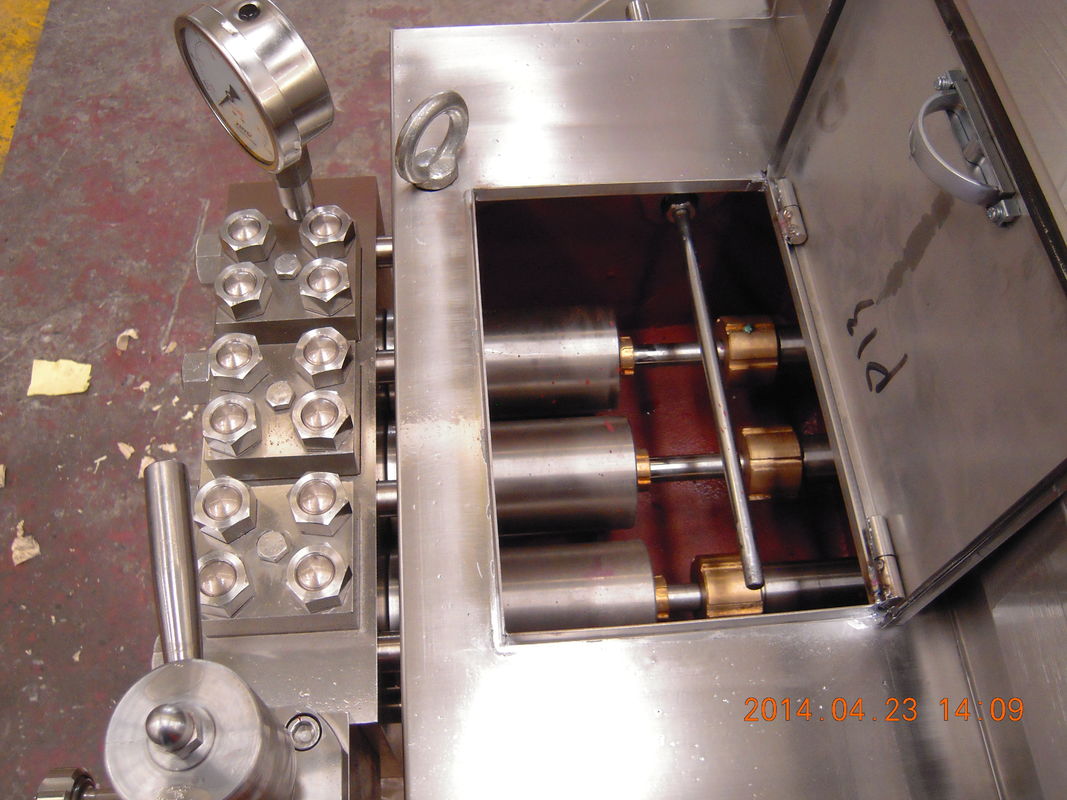

Small Size Milk Homogenizer Machine Reliable Sealing Durable 0



Small Size Milk Homogenizer Machine Reliable Sealing Durable 1



Small Size Milk Homogenizer Machine Reliable Sealing Durable 2



Small Size Milk Homogenizer Machine Reliable Sealing Durable 3
