Small Scale Milk Homogenizer , Industrial Homogenizer Equipment Polished

China Small Scale Milk Homogenizer , Industrial Homogenizer Equipment Polished supplier
Small Scale Milk Homogenizer , Industrial Homogenizer Equipment Polished supplier Small Scale Milk Homogenizer , Industrial Homogenizer Equipment Polished supplier

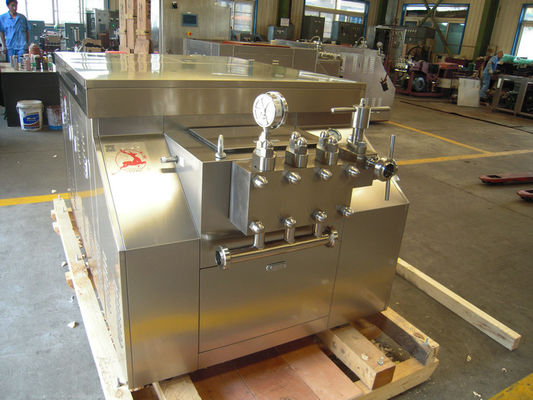

Large Image :  Small Scale Milk Homogenizer , Industrial Homogenizer Equipment Polished

Product Details:

Place of Origin: CHINA
Brand Name: SAMRO
Certification: CE&ISO
Model Number: SRH200-25

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Export wooden box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 3 units 30days
Contact Now
Detailed Product Description
Name: Milk Homogenizer Capacity: 200L/H
Max Pressure: 25mpa Working Pressure: 20mpa
Shell Materail: SUS 304 Feature: Small Scale

Small Scale Milk Homogenizer , Industrial Homogenizer Equipment Polished



Samro homogenizer technology dates back to 1980, when China’s first 60MPa homogenizer, to fill the gap, and won the second prize of Shanghai Science and Technology and other six awards. More than twenty years, the application technology development path the deer take, aiming at the international advanced technology, the pursuit of high quality, efficient, durable, worry the market demand careful cultivation. Products plan to achieve nationwide coverage. Import substitution, the world’s goals. Our company has won free deer homogenizer fairs abroad, the national brand-name industry, Shanghai Science and Technology Festival logo products, the twenty-eighth International Business Award and other honors: in 2001 the French Technology Quality Supervision and Evaluation Committee as a “quality product” and “China entered the WTO Products” in 2003, was named “Shanghai patent pilot unit”, has won the “China Food and Packaging Machinery Industry Association, Shanghai Food Association and council member.

the machine, and in fine chemical and pharmaceutical industry, widely used. Exports to Europe, America, Africa Ha Southeast Asian countries. Since 2005, imports into the other spare parts processing homogenizer supply point and maintenance bases.



WORKING THEORY:

The working method of SAMRO homogenizer as following, when product is flowing through the adjustable valve, the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um) because of pressure decrease, expansion, explosion, cutting and high-speed impacting etc., then the emulsions or dispersions could be produced. This process refers to the following Fig.
Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.

A: Power End

1.1 Driving: two-stage gear box;first stage, the triangle belt drive, second stage, crank gear symmetrical transmission; Special alloy bearing, bilateral Rolling bearing, horizontal smooth, low noise, mechanical efficiency is increased by about 10% on average.

1.2 Lubricating: Automatic splash lubrication, safe and reliable.

B. Liquid End

1.1 Pump: three way type, gland radial self sealing, durable, no leakage.

1.2 Plunge: 3 plunge, durable, safe, easy dis-assembly.

1.3 Checking valve: Poppet valve in and out each 3 sets, total 6 sets, Durable, reliable, make sure flow is over rated flow.

1.4 Pressure control: one diaphragm gauge assembly, control high pressure and low pressure.



Types of homogenizer:

Manual operating Homogenizer

Two-stage homogenizing system with manual pressure adjustment is easy to use. It is your economic choice.

Hydraulic operating Homogenizer

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to proportional valves.

Pneumatic operating Homogenizer

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remo.



Spare parts:

Checking valve: the conical valve is applicable for the most product material. The valve material can vary according to customer’s requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.

Homogenizing valve: made of tungsten – Cobalt – Titanium alloy or erosion-resisting cemented carbide. It is applicable for 0-1000 bar homogenizing pressure and CIP cleaning.

Sealing: packing seal and V-section seal are available for different homogenized materials.

Plunger: Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy demonstrates that the life is 6000-10000 hours.





Specification



Type and Specification SRH200-25
Rated volume of flow: L/H ≥200L/H
Max pressure: Mpa(=10bar) 25MPa(250bar)
Rated working pressure: Mpa 0-20MPa
Feeding pressure 0.2-0.3MPa(2-3bar)
CIP 100℃/≤1000CP
Motor power : KW 4 KW
Machine size: cm 146×100×140
Weight 700Kg
Lubricating oil L-HM100 OR Mobil SHC627(ISOVG100)

Housing Material

Sealing Material

Stainless steel packing
Pressure gauge Diaphragm
Support material shaped steel



Details



Small Scale Milk Homogenizer , Industrial Homogenizer Equipment Polished
