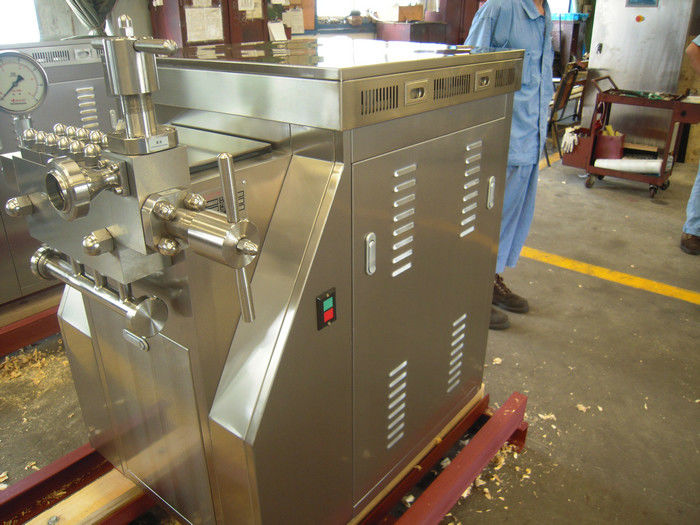

High Pressure Milk Homogenizer Machine Manual / Hydraulic Operating

China High Pressure Milk Homogenizer Machine Manual / Hydraulic Operating supplier
High Pressure Milk Homogenizer Machine Manual / Hydraulic Operating supplier High Pressure Milk Homogenizer Machine Manual / Hydraulic Operating supplier

Large Image :  High Pressure Milk Homogenizer Machine Manual / Hydraulic Operating

Product Details:

Place of Origin: China
Brand Name: SAMRO
Certification: ISO
Model Number: SRH500-70

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: Plywood package with iron base
Delivery Time: 30 days after receiving down payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Milk Homogenizer Machine Max Pressure: 70 Mpa
Rated Working Pressure: 56 Mpa Motor Power: 11 KW
Feature: High Pressure Weight: 800 KG
Piston: 3 Business Type: Manufacture

High Pressure Milk Homogenizer Machine Manual / Hydraulic Operating



Milk Homogenizer Machine Specifications:



The milk homogenizer is widely used in the production, scientific research and technical development

of a lot of areas, such as: food, dairy food, drink, pharmacy, chemical industry, biological technology and

so on.

1. Be used as high pressure homogenizer .It can cause the material thinning and mixture under the three action

of extruding, strong impacting and decompression inflating. It is an important equipment

of food, dairy food, drink processing and so on. It can cause the fat globule thinning while

homogenization under high pressure to the milk, soy milk this kind of dairy food.

2. Be used as high pressure delivery pump

It is an important equipment during the production of powdered medicine, as the fluid material

produce high pressure when through the equipment, and be made to powder after through

the spray drying device.



Milk Homogenizer Machine Technical parameters



Model

SRH500-70

Rated flow: L/H

500

Max pressure: Mpa

70

Normal working pressure: Mpa

0-56

Inlet pressure: Mpa

0.2-0.3

Adaptable material feeding temperature / viscosity

100℃/≤1000CP

Rated motor power: KW

11

Size: cm

125*85*115

Weight: KG

800

Lubricating oil

L-HM100 OR Mobil SHC627(ISO VG100)

Housing Material

Stainless steel

Plunge Sealing Material

packing

Pressure gauge

Diaphragm

Support material

shaped steel



Milk Homogenizer Machine specification



Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.

Plunger:High hardness stainless alloy(PH-type)

Check valve:High hardness stainless alloy (GrMoFr), abrade-resisting and impact-resisting

Pump block: SUS321.

Sealing: packing seal, with heat-proof reaching 100℃





Main applications:

  1. Food and Drink: enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, ice cream, baby food, chocolate, flavors and fragrances, milk powder.
  2. Chemical: Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity improvers.
  3. Biotechnology: Cell disruption of yeast. E.coil other bacteria and algae.
  4.  Cosmetics: Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
  5. Pharmaceutical: Antibiotics, skin creams, intravenous emulsion, ointments, tablet coatings, lipostiomes.


WORKING THEORY:



The working method of SAMRO homogenizer as following, when product is flowing through the adjustable valve, the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um) because of pressure decrease, expansion, explosion, cutting and high-speed impacting etc., then the emulsions or dispersions could be produced. This process refers to the following Fig.
Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.



Types of homogenizer:

  1. Manual operating Homogenizer

Two-stage homogenizing system with manual pressure adjustment is easy to use. It is your economic choice.

  1. Hydraulic operating Homogenizer

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to proportional valves.

  1. Pneumatic operating Homogenizer

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remo.

Spare parts:

Checking valve: the conical valve is applicable for the most product material. The valve material can vary according to customer’s requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.

Homogenizing valve: made of tungsten – Cobalt – Titanium alloy or erosion-resisting cemented carbide.  It is applicable for 0-1000 bar homogenizing pressure and CIP cleaning.

Sealing: packing seal and V-section seal are available for different homogenized materials.

Plunger: Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy demonstrates that the life is 6000-10000 hours.



Factory View:



High Pressure Milk Homogenizer Machine Manual / Hydraulic Operating



Questions you may have about our factory:



1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.



2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.



3. What’s the meaning of your Model No.?

We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.



We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
