Hand Operate Industrial Homogenizer High Viscosity CIP Cleaning

China Hand Operate Industrial Homogenizer High Viscosity CIP Cleaning supplier
Hand Operate Industrial Homogenizer High Viscosity CIP Cleaning supplier Hand Operate Industrial Homogenizer High Viscosity CIP Cleaning supplier Hand Operate Industrial Homogenizer High Viscosity CIP Cleaning supplier

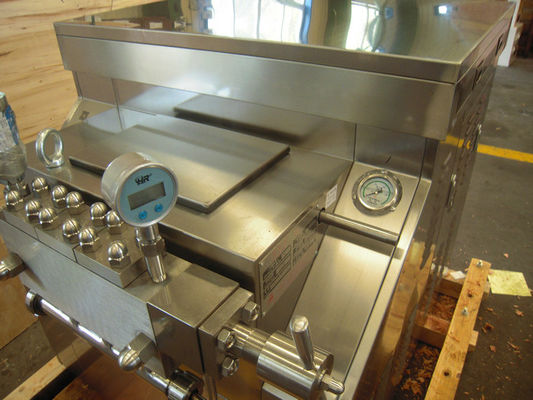

Large Image :  Hand Operate Industrial Homogenizer High Viscosity CIP Cleaning

Product Details:

Place of Origin: China
Brand Name: SAMRO
Certification: ISO
Model Number: SRH4000-30

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: plywood package with iron base
Delivery Time: 20-30 working days after receiving down payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Industrial Homogenizer Capacity: 4000 L/H
Max Pressure: 30 Mpa Normal Working Pressure: 0-24 Mpa
Motor: 37 KW Operate: Hand Operate
Weight: 2000 KG Size: 170*110*140 Cm

Hand Operate Industrial Homogenizer High Viscosity CIP Cleaning



Industrial Homogenizer Advantage:


1. Pressure homogenizer through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion.
2. Homogenizing valve, check valve and plunger are made of alloy steel, which is resistant to wear, impact and long service life.
3. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process.



Model: SRH4000-30:



Model

SRH4000-30

Rated volume of flow

≥4000 L/H

Maximum working pressure

30 MPa

Rated working pressure

≤24 MPa

Feed pressure

0.2-0.3 MPa

CIP

100℃/≤10000CP

Weight

2000 KG

Size

170*110*140 cm

Piston

3

Shell material

Stainless steel



Components:



Check Valve:

The check valve is conical valve. It’s applicable for the most product material. The valve material can vary according to customers’ requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.



Homogenizing valve:

Homogenizing valve is made of Tungsten-Cobalt- Titanium alloy or erosion-resisting cemented carbide. Applicable for 0-1000bar homogenizing pressure and CIP cleaning.



Sealing:

Packing seal and V-section seal are available for different homogenized material.



Plunger:

Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy industry demonstrates that the life is 6000-10000 hours.



Industrial Homogenizer Applications:



Food and Drink:

Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.



Chemical:

Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.



Biotechnology:

Cell disruption of yeast, E.coil other bacteria and algae.



Pharmaceutical:

Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes



Cosmetics:

Hair products, skin creams, lotions, perfumes, shampoos and conditioners.

Hand Operate Industrial Homogenizer High Viscosity CIP Cleaning

Hand Operate Industrial Homogenizer High Viscosity CIP Cleaning



Types of Homogenizer:



Manual Operating Homogenizer:

Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.



Hydraulic Operating Homogenizer:

The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.



Pneumatic Operating Homogenizer:

The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.



Large Capacity Homogenizer:

This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.



Laboratory Homogenizer:

Capacity: 60L/H Max Pressure</=70MPa

Minimum Sample Volume: 200 ml



Questions you may have about our company and product:



1. Are you a new company?

Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.



2. Do you have different pressure from the mentioned one?

Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.



3. What’s the meaning of your Model No.?

We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.



We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need. We are happy to service you.
