Home ProductsIndustrial Homogenizer

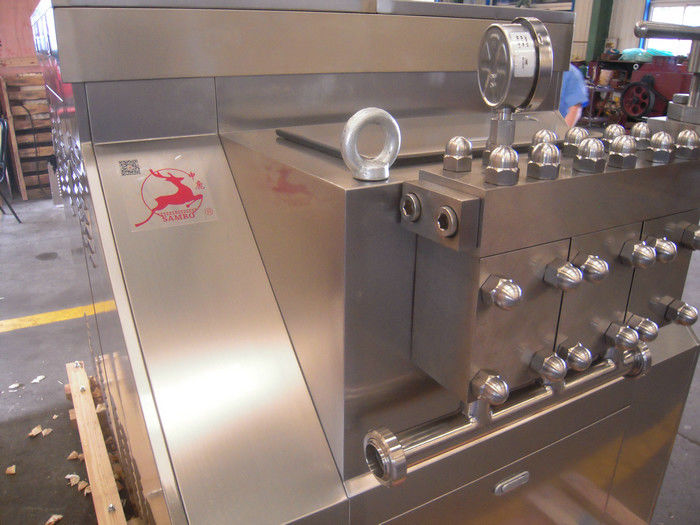

High Pressure Industrial Homogenizer For Food And Drink / Chemical

High Pressure Industrial Homogenizer For Food And Drink / Chemical

    • High Pressure Industrial Homogenizer For Food And Drink / Chemical
    • High Pressure Industrial Homogenizer For Food And Drink / Chemical
    • High Pressure Industrial Homogenizer For Food And Drink / Chemical
  • High Pressure Industrial Homogenizer For Food And Drink / Chemical

    Product Details:

    Place of Origin: China
    Brand Name: SAMRO
    Certification: ISO
    Model Number: SRH1000-25

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiable
    Packaging Details: plywood package with iron base
    Delivery Time: 20-30 working days after receiving down payment
    Payment Terms: T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Name: Industrial Homogenizer Capacity: 1000 L/H
    Application: Food And Drink / Chemical Motor: 7.5 KW
    Warranty Time: 12 Months Weight: 750 KG
    Size: 120*80*115 Cm Feature: High Pressure
    High Light:

    pharmaceutical homogenizer

    ,

    homogenizer for emulsion

    High Pressure Industrial Homogenizer For Food And Drink / Chemical



    Industrial Homogenizer Description



    Industrial Homogenizer is widely applicated in biological medicine, food industry, day care, coating printing ink, nano-materials, petroleum chemical, printing and dyeing auxiliaries, paper industry, pesticide and fertilizer, plastic rubber, power electronics and other fine chemical industry.The high pressure homogenizer is used for homogeneous emulsification of liquid material (liquid-liquid phase or liquid-solid phase) with a viscosity below 0.2 Pa.s and a temperature below 80 ° C.



    Industrial Homogenizer Parameters



    Model

    SRH1000-25

    Rated volume of flow

    ≥1000 L/H

    Maximum working pressure

    25 MPa

    Rated working pressure

    ≤20 MPa

    Feed pressure

    0.2-0.3 MPa

    CIP

    100℃/≤10000CP

    Weight

    750 KG

    Size

    120*80*115 cm

    Piston

    3

    Shell material

    Stainless steel



    Components:



    Check Valve:

    The check valve is conical valve. It’s applicable for the most product material. The valve material can vary according to customers’ requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.



    Homogenizing valve:

    Homogenizing valve is made of Tungsten-Cobalt- Titanium alloy or erosion-resisting cemented carbide. Applicable for 0-1000bar homogenizing pressure and CIP cleaning.



    Sealing:

    Packing seal and V-section seal are available for different homogenized material.



    Plunger:

    Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy industry demonstrates that the life is 6000-10000 hours.



    Types of Homogenizer:



    Manual Operating Homogenizer:

    Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.



    Hydraulic Operating Homogenizer:

    The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.



    Pneumatic Operating Homogenizer:

    The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.



    Large Capacity Homogenizer:

    This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.



    Laboratory Homogenizer:

    Capacity: 60L/H Max Pressure</=70MPa

    Minimum Sample Volume: 200 ml

    High Pressure Industrial Homogenizer For Food And Drink / Chemical 0

    High Pressure Industrial Homogenizer For Food And Drink / Chemical 1



    Questions you may have about our company and product:



    1. Are you a new company?

    Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.



    2. Do you have different pressure from the mentioned one?

    Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you rather good price.



    3. What’s the meaning of your Model No.?

    We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.



    We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need. We are happy to service you.
