Place of Origin: | China |
Brand Name: | SAMRO |
Certification: | ISO |
Model Number: | SRH500-70 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | negotiable |
Packaging Details: | plywood with iron base package |
Delivery Time: | 20-30 working days after receiving down payment |
Payment Terms: | T/T |
Supply Ability: | 50 sets per month |
Name: | Dairy Homogenizer | Max Pressure: | 70 Mpa |
---|---|---|---|
Normal Working Presure: | 0-56 Mpa | Motor: | 11 KW |
Size: | 125*85*115 Cm | Weight: | 800 KG |
Warranty Time: | 12 Months | Application: | Food And Drink |
High Light: | Drink Enzymes Dairy Homogenizer,500L/H Dairy Homogenizer,Remote Control Dairy Homogenizer |

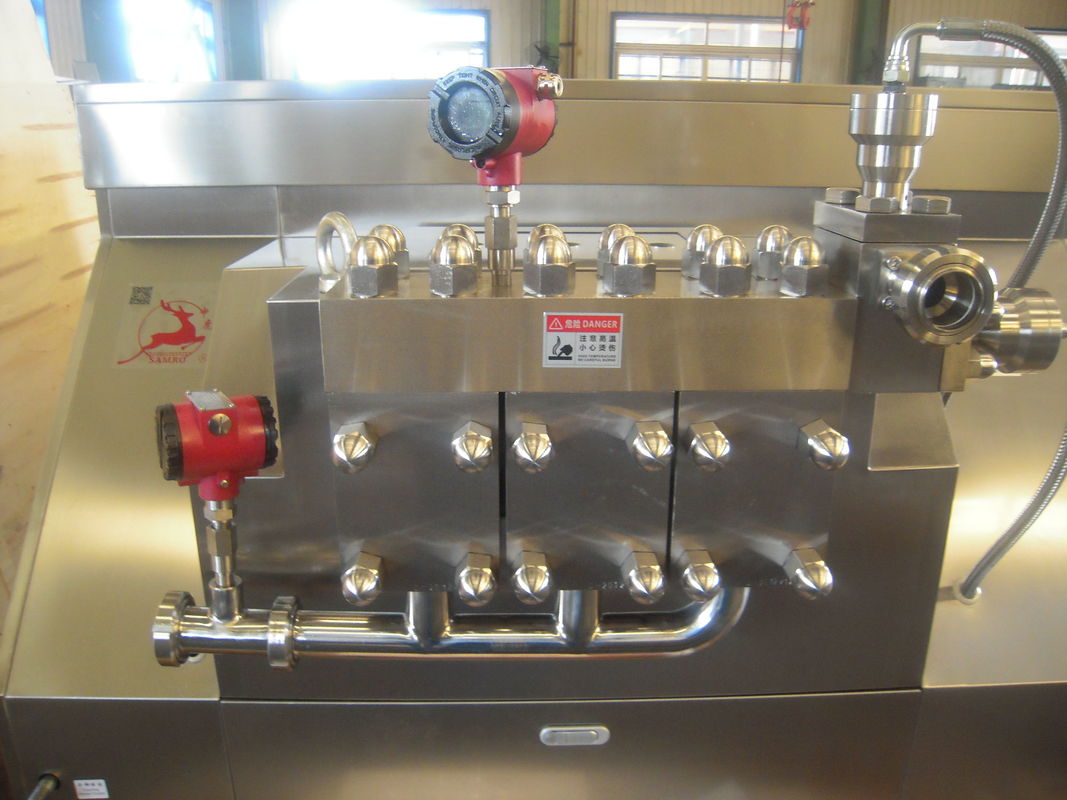

Small Capacity Dairy Homogenizer For Food And Drink Enzymes 500 L/H
Dairy Homogenizer technical parameters:
Model |
SRH500-70 |
Rated flow: L/H |
500 |
Max pressure: Mpa |
70 |
Normal working pressure: Mpa |
0-56 |
Inlet pressure: Mpa |
0.2-0.3 |
Adaptable material feeding temperature / viscosity |
100℃/≤1000CP |
Rated motor power: KW |
11 |
Size: cm |
125*85*115 |
Weight: KG |
800 |
Lubricating oil |
L-HM100 OR Mobil SHC627(ISO VG100) |
Housing Material |
Stainless steel |
Plunge Sealing Material |
packing |
Pressure gauge |
Diaphragm |
Support material |
shaped steel |
Dairy Homogenizer Applications:
1.Food and Drink
Enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, Ice cream, baby food, chocolate, flavors and fragrances, milk powder.
2.Chemical
Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity Improvers.
3.Biotechnology
Cell disruption of yeast, E.coil other bacteria and algae.
4.Pharmaceutical
Antibiotics, skin cream, intravenous, emulsion, ointments, tablet coatings, lipostiomes
5.Cosmetics
Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
Types of Homogenizer:
1.Manual Operating Homogenizer
Two- stage homogenizer system with manual pressure adjustment is easy to use. It is your economic choice.
2.Hydraulic Operating Homogenizer
The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to Proportional valves.
3.Pneumatic Operating Homogenizer
The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remote control.
4.Large Capacity Homogenizer
This machine has five plungers with the maximum flow reaching 30000L/H. The hydraulic end adopts the split structure which facilitates assembly and disassembly. The pressure adjustment can adopt manual or hydraulic mode.
5.Laboratory Homogenizer
Capacity: 60L/H Max Pressure</=70MPa
Minimum Sample Volume: 200ml
Qustions you may have about our company:
1. Are you a new company?
Actually, we have 20 years experience specialized in high pressure homogenizer. We are the most famous manufacture of high pressure homogenizer in China and we have very good reputation in China. Now we want to develop new area and bring high quality homogenizer with competitive price to overseas.
2. Do you have different pressure from the mentioned one?
Yes, we have different pressure homogenizer from 20-150Mpa. And the capacity could be different, too. You can tell us the requirement of the pressure and capacity, our technician will check if we can meet your demand. And our sales will offer you the best service and rather competitive price.
3. What’s the meaning of your Model No.?
We think example can make you understand more quickly. For example, our model SRH1000-30, SRH means SAMRO Homogenizer, 1000 means the capacity of each hour is 1000L, 30 means the max pressure of this model.
We are a 20 years original specialized factory here. Leave us an inquiry to know more details according to the different models you need.
If you have any special request, please kindly let us know, we will try our best to meet your demand.
