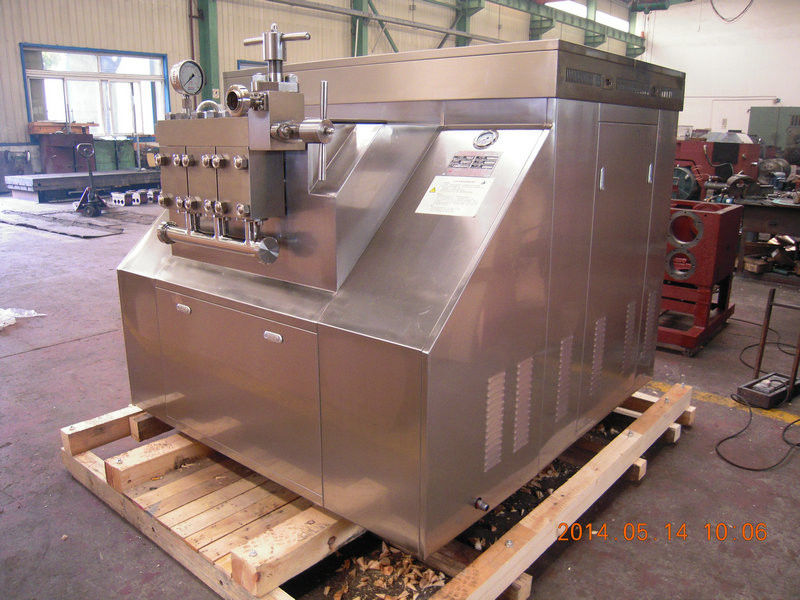

Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment

Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment

    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
    • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment
  • Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment

    Product Details:

    Place of Origin: China
    Brand Name: SAMRO
    Certification: CE
    Model Number: SRH7000-90

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Plywood package
    Delivery Time: 30 days after receiving down payment
    Payment Terms: T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Rated Flow: 7000L/H Max Pressure: 90 Mpa
    Rated Working Pressure: 72 Mpa Motor Power: 132 KW
    Size: 226*172*175cm Weight: 4000KG
    Piston: 3 Business Type: Manufacture
    High Light:

    Homogenizer Equipment

    ,

    Homogenizer Machine





    Low / high pressure Industrial Homogenizer , Two Stage Homogenizer equipment



    Specifications:



      A: Power End

    1.1 Driving: two-stage gear box;first stage, the triangle belt drive, second stage, crank gear symmetrical transmission; Special alloy bearing, bilateral Rolling bearing, horizontal smooth, low noise, mechanical efficiency is increased by about 10% on average.

       1.2 Lubricating: Automatic splash lubrication and oil pump lubrication, safe and reliable.

          B. Liquid End



    1.1 Pump: three way type, gland radial self sealing, durable, no leakage

       1.2 Plunge: 3 plunge, durable, safe, easy dis-assembly

    1.3 Checking valve: Poppet valve or ball valve in and out each 3 sets, total 6 sets, Durable, reliable, make sure flow is over rated flow.

    1.4 Pressure control: one diaphragm gauge assembly, control high pressure and low pressure.



    2, Technical parameters



    Model

    SRH7000-90

    Rated flow: L/H

    7000

    Max pressure: Mpa

    90

    Normal working pressure: Mpa

    0-90

    Inlet pressure: Mpa

    0.2-0.3

    Adaptable material feeding temperature / viscosity

    100℃/≤1000CP

    Rated motor power: KW

    132

    Size: cm

    226*172*175

    Weight: KG

    4000

    Lubricating oil

    L-HM100 OR Mobil SHC627(ISO VG100)

    Housing Material

    Stainless steel

    Plunge Sealing Material

    packing

    Pressure gauge

    Diaphragm

    Support material

    shaped steel



    3, Other specification

    Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.

    Plunger:High hardness stainless alloy(PH-type)

    Check valve:High hardness stainless alloy (GrMoFr), abrade-resisting and impact-resisting

    Pump block: SUS321.

    Sealing: packing seal, with heat-proof reaching 100℃







    Main applications:

    1. Food and Drink: enzymes, dressing, tomato sauce, fruit paste, butter oil, drink, dairy drink, ice cream, baby food, chocolate, flavors and fragrances, milk powder.
    2. Chemical: Disinfectants, emulsifiers, fuel oil, insecticides, oants, oil emulsions, silicone emulsions, wax emulsions, lubricants, resins/rosins, latex, viscosity improvers.
    3. Biotechnology: Cell disruption of yeast. E.coil other bacteria and algae.
    4.  Cosmetics: Hair products, skin creams, lotions, perfumes, shampoos and conditioners.
    5. Pharmaceutical: Antibiotics, skin creams, intravenous emulsion, ointments, tablet coatings, lipostiomes.


    WORKING THEORY:

    The working method of SAMRO homogenizer as following, when product is flowing through the adjustable valve, the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um) because of pressure decrease, expansion, explosion, cutting and high-speed impacting etc., then the emulsions or dispersions could be produced. This process refers to the following Fig.
    Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized.



    Types of homogenizer:

    1. Manual operating Homogenizer

    Two-stage homogenizing system with manual pressure adjustment is easy to use. It is your economic choice.

    1. Hydraulic operating Homogenizer

    The hydraulic control system is developed to adjust the homogenizer pressure, and it is easy to upgrade to remote control system by changing to proportional valves.

    1. Pneumatic operating Homogenizer

    The pneumatic control system is developed for the homogenizer, and it is easy to upgrade to remo.



    Spare parts:

    Checking valve: the conical valve is applicable for the most product material. The valve material can vary according to customer’s requirement for different working condition or CIP cleaning. The ball valve is applicable for product material of high viscosity.

    Homogenizing valve: made of tungsten – Cobalt – Titanium alloy or erosion-resisting cemented carbide.  It is applicable for 0-1000 bar homogenizing pressure and CIP cleaning.

    Sealing: packing seal and V-section seal are available for different homogenized materials.

    Plunger: Made of erosion-resisting stainless steel hardened smooth surface to achieve long life practice in dairy demonstrates that the life is 6000-10000 hours.
